in3D Modelingheld bykiran@cwLast seen:
Contest Ended, Winner(s) have been selected.
-
Open
-
Choosing Finalist
-
Ended
Description:

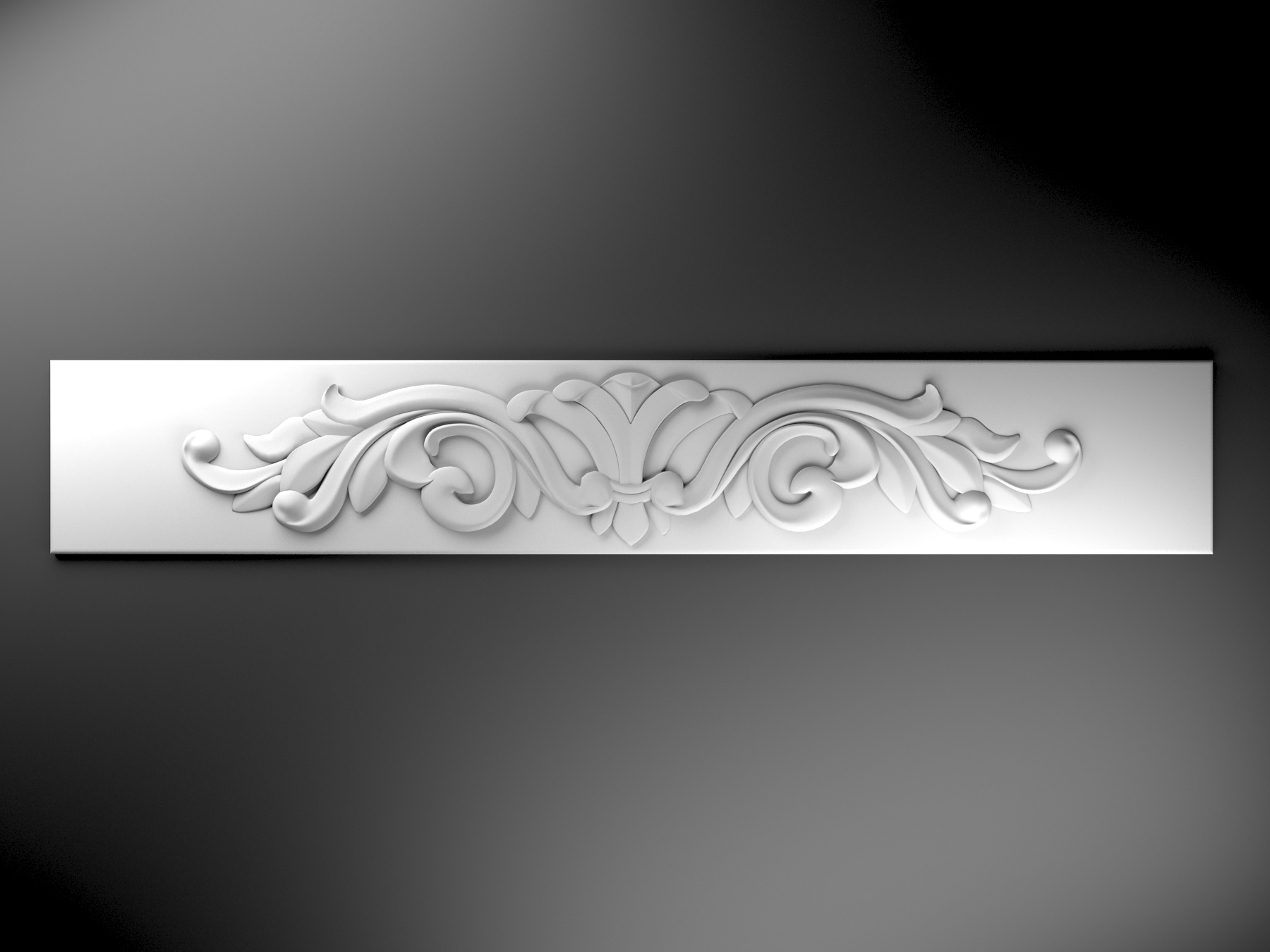

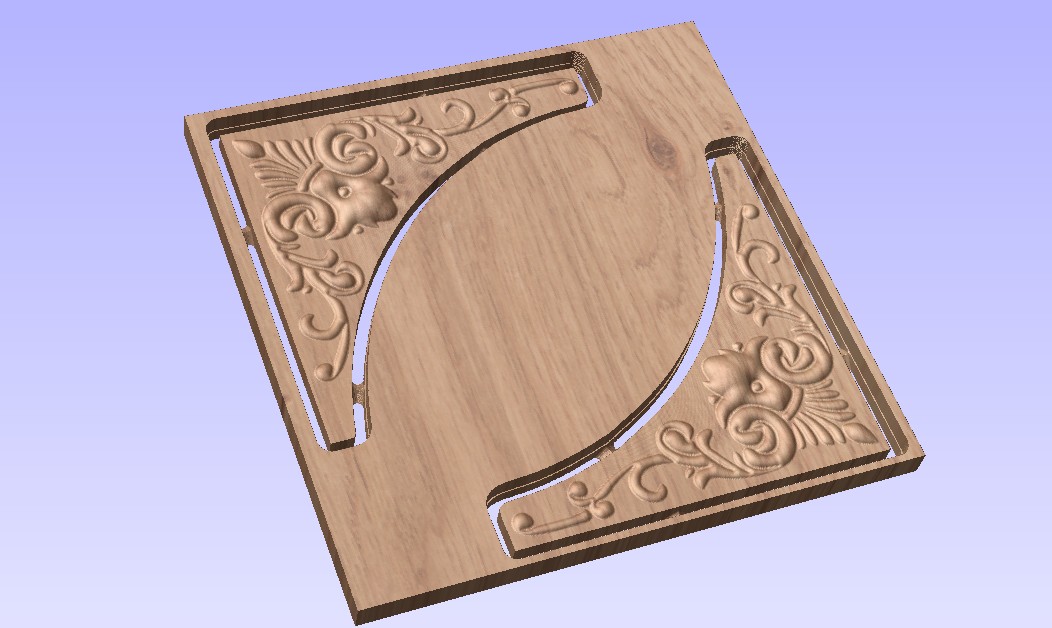

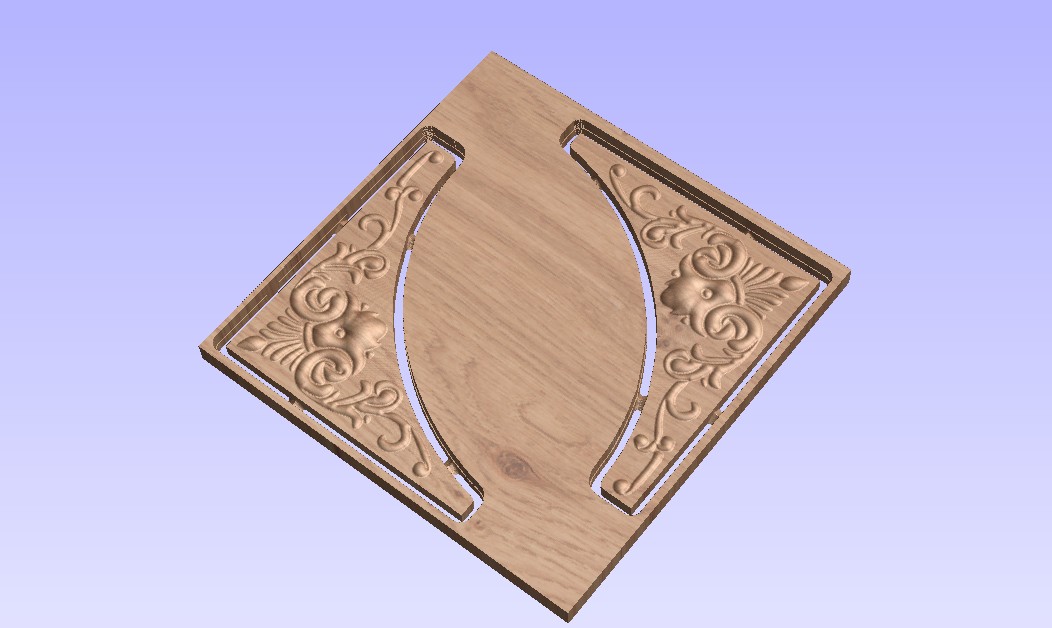

We need 3D rendering of the drawings attached in a STL format. The designer will need to interpret the drawings into 3D models which will be used for wood carvings with a CNC routing machine. The appearance should look as if hand-carved.
Wants:
Files should be suitable for CNC carving so they need to be high resolution.Triangular piece:

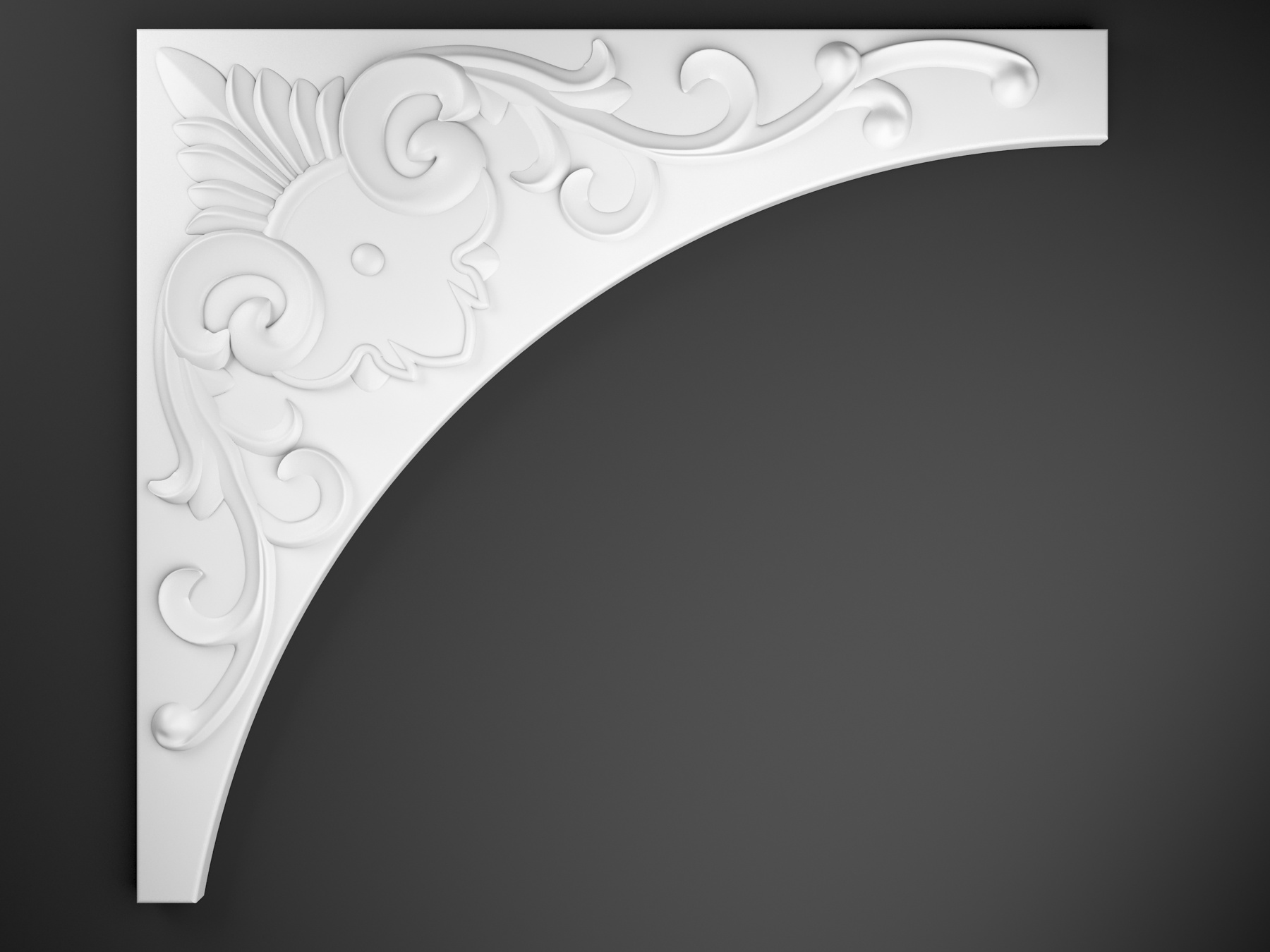

8 ½” x 9- 7/16” Relief: ½”
Rectangular Piece:

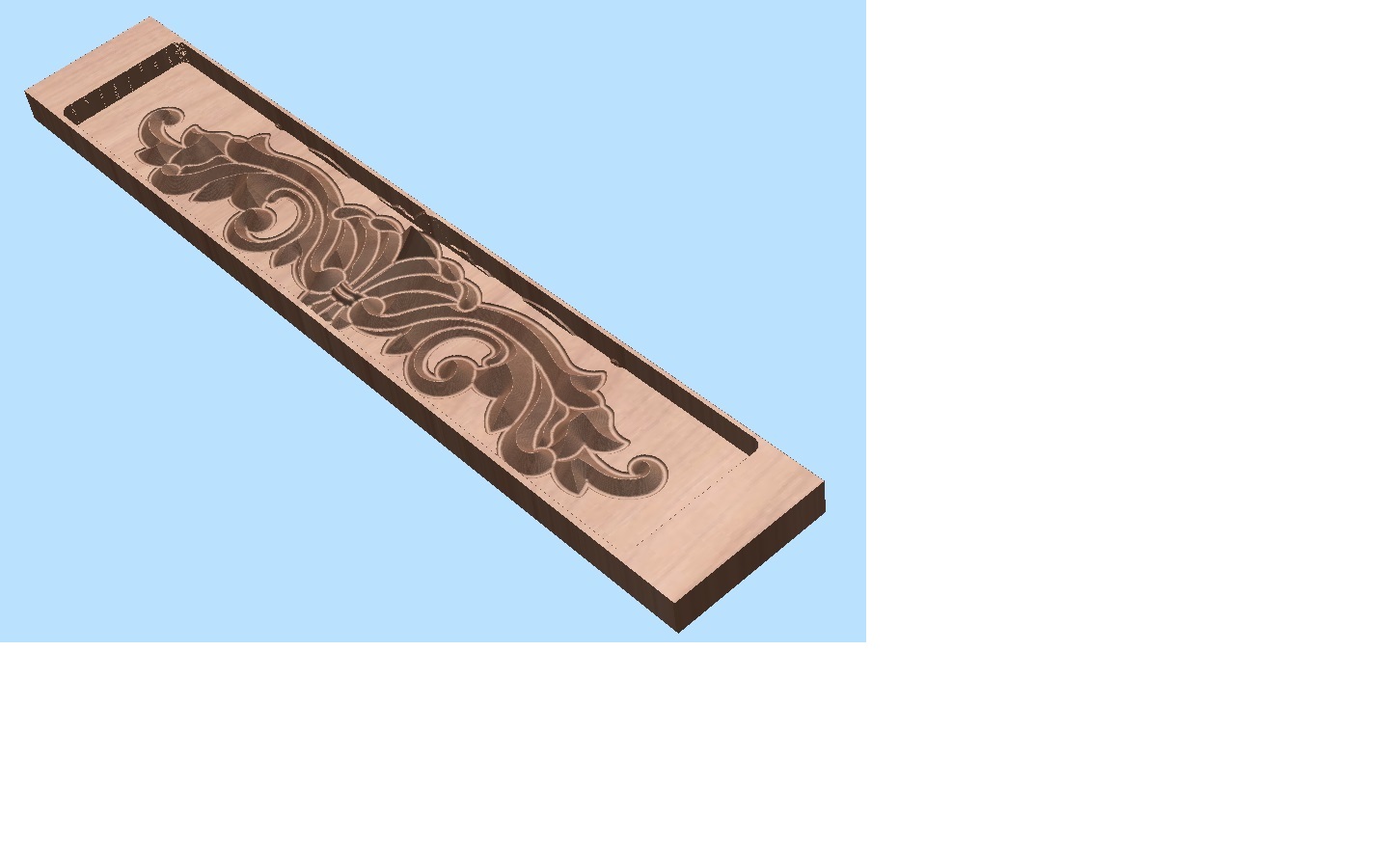

3 ¼” x 19” Relief: ½”
Don't Wants:
Designer should not deviate too much from original drawings.
Software:
- aspire
Additional Information
Here are some more details to answer the questions we've been asked for this contest:The overall thickness is 7/8". From the zero plane of the surface to the highest point it should be about 5/8".
The outer rectangular box size is 3 ¾”x 22-3/8”. The approx size of the carved section is 3 ¼” x 19”.
The edge of the panel goes into a groove so there is no detail on it. There is just a carved portion.
Prepaid PrizeEntries
Discussion
Do you have a quality image file of the carve design? When I export a image from your solidworks e drawing file which you have give, the quality of the final product become low in aspire..if you have a image attach here asap
Thank you
Thank you
For the people who couldn't open the original dwg file, I have uploaded a lower CAD version. Please try the file name "carving" (all lowercase).
Some people are getting confused about what the end result should look like. Here is a link that shows what we are looking for in terms of 3D carving.
http://3dcarving.blogspot.com/2012/01/basic-3d-carving-technique-02.html
http://3dcarving.blogspot.com/2012/01/basic-3d-carving-technique-02.html
Please note that the first submission by filiposki was not correctly done. We do not want an embossed look. We want a carving.
jmorrow-
We will be running this on a 3 axis CNC. We have all basic tooling for the CNC. We will be doing a lot of the work with a 1/8" ball tip and we also have a v grooving tool.
We will be running this on a 3 axis CNC. We have all basic tooling for the CNC. We will be doing a lot of the work with a 1/8" ball tip and we also have a v grooving tool.
what tooling do you have to help in the tool path and tool forms while designing in aspire
I will have our designer send the lower CAD version.
youssef90-
I will try to upload the file in STL format.
youssef90-
I will try to upload the file in STL format.
File not opened..not supported
Please save as with lower CAD version!
Can you Upload the file in STL format?
because this file in DWG and is not available!
because this file in DWG and is not available!
